National Institutes for Quantum and Radiological Science and Technology, Takasaki Advanced Radiation Research Institute, Takasaki Ion Accelerators for Radiation Application

Accelerator; Cyclotron

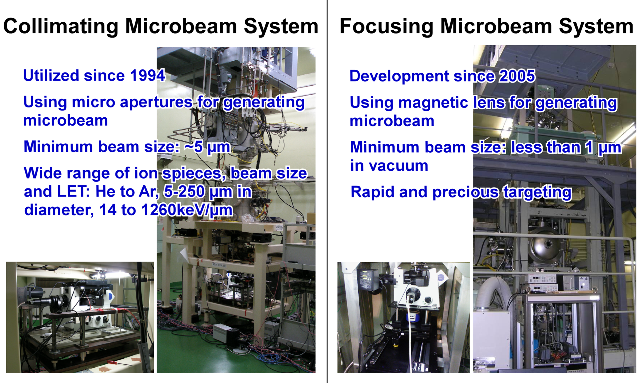

Collimating beamline:
Ion/Energy(MeV/amu)/Spot(µm): C/18.3/20; Ne/13.0/5; Ar/11.5/5
Speed/1000 spots

Focusing beamline (under tuning):
Ion/Energy(MeV/µm)/spot(µm): Ne/13.0/1, Ar/13.3/1

High Energy Accelerator Research Organization, Institute of Materials Structure Science, Photon Factry

Accelerator; Synchrotron
Energy; 4-20 keV Soft X-ray with Si (1,1,1) monochromator
Spot; minimum 5 µm x 5 µm with variable collimators

National Institutes for Quantum and Radiological Science and Technology, National Institute of Radiological Sciences, Dept. Technical Support and Development, Single Particle Irradiation System to Cell

Accelerator; Tandem
Ion/Energy(MeV/amu)/Spot(µm): p//2

Central Research Institute of Electric Power Industry

Wakasa-Wan Energy Research Center

Nagasaki University, Global Strategic Center for Radiation Health Risk Control

National Institute of Radiological Sciences,
Heavy-Ion Medical Accelerator in Chiba

RIKEN,
Nishina Center for Accelerator-Based Science

Gunma University,
Heavy-ion Medical Center

Kyoto University,
Institute of Chemical Research
